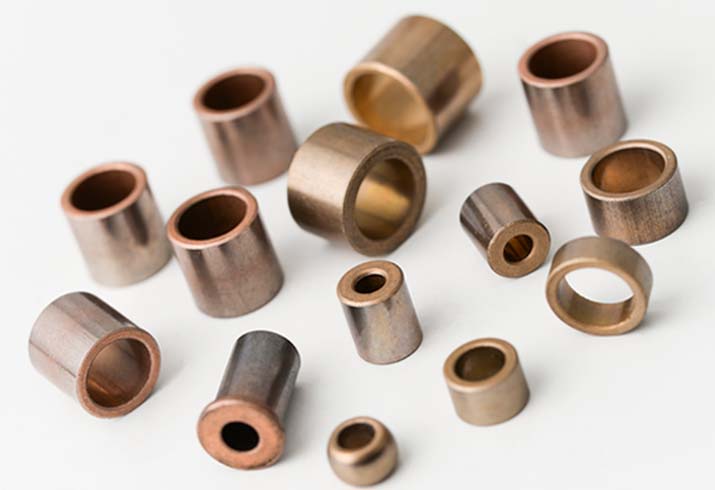

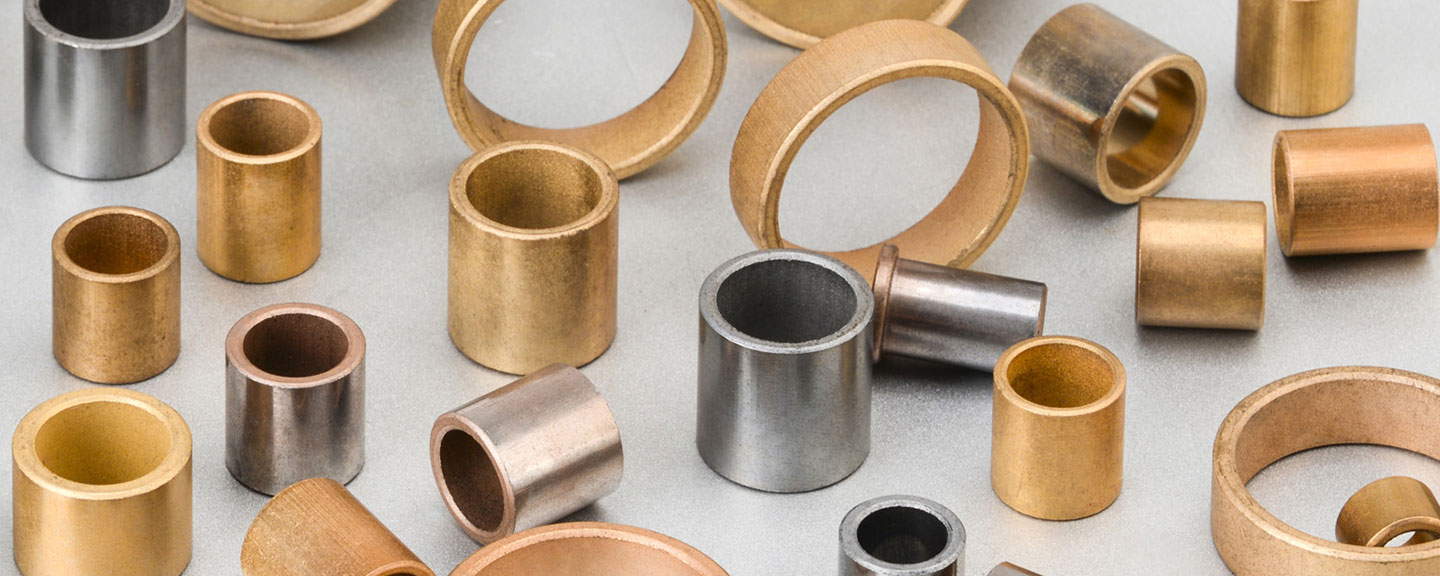

FU Copper-based oil-impregnated bearings are made of tin bronze powder as raw material, pressed by a mold, and shaped after high-temperature sintering. It has fine and uniform pores and is vacuum-impregnated with lubricating oil to form an oily state.
Tech. Data
|
Performance |
FU1 | FU2 |
FU3 |
|
Basic material |
Cu |
Fe |
Cu＆Fe |
|
Max. Load |
35 |
35 |
35 |
|
Temp. |
-60~300 |
-60~300 |
-60~300 |
|
Friction coefficient |
0.08~0.25 |
0.08~0.25 |
0.08~0.25 |
|
Max. Speed |
2.5 |
2.5 |
2.5 |
|
Max. PV |
2.45 |
2.45 |
2.45 |
